How to Use CG-FSG-220-H1 Food Grade Graphite Lubricant

Written by Adam Bzowski (Founder of Chain Guard Food Grade Lubricants) 11/25/2024

Customers often contact us to ask "How do I apply CG-FSG-220-H1 Extreme Temperature White Graphite Lubricant on an oven chain?" so we thought we would write this post to address this common question. CG-FSG-220-H1 is a premium, cutting-edge, high-performance lubricant engineered specifically for demanding oven chain applications in food processing environments, operating at temperatures exceeding 1000°F (538°C). Its innovative formula combines a robust synthetic carrier fluid with food-grade white graphite, providing exceptional protection and lubrication under extreme heat.

This lubricant is NSF H1 certified, making it safe for incidental food contact, and with proper application and maintenance, CG-FSG-220-H1 ensures optimal chain performance, reduces wear, and minimizes downtime in high-temperature food processing operations.

Proper application is essential to ensure optimal results and prolong chain life. The following guide outlines best practices for storing, applying, and maintaining this lubricant to ensure you get the maximum benefits from its advanced formulation.

Preparation Before Application

This graphite-based formulation requires thorough agitation (stirring) before application to ensure the suspension of graphite solids within the carrier fluid.
To apply this product effectively, the oven chain temperature must be below to 275°C (527°F) or lower.
Do not dilute.

How to Use CG-FSG-220-H1 Food Grade Graphite Lubricant

Written by Adam Bzowski (Founder of Chain Guard Food Grade Lubricants) 11/25/2024

This graphite-based formulation requires thorough agitation (stirring) before application to ensure the suspension of graphite solids within the carrier fluid.
To apply this product effectively, the oven chain temperature must be below to 275°C (527°F) or lower.
Do not dilute.

How to Use CG-FSG-220-H1 Food Grade Graphite Lubricant

Written by Adam Bzowski (Founder of Chain Guard Food Grade Lubricants) 11/25/2024

This graphite-based formulation requires thorough agitation (stirring) before application to ensure the suspension of graphite solids within the carrier fluid.
To apply this product effectively, the oven chain temperature must be below to 275°C (527°F) or lower.
Do not dilute.

An image of a magnifying glass on an orange background

Step 1
Inspect the Equipment

Ensure chains are clean and free of debris or old lubricant residue. If possible, clean chains using compressed air, wire brush, and/or dry ice blasting.

An image of a hand whisk on an orange background

Step 2
Agitate the Product

Mix lubricant thoroughly to suspend the graphite additives. Use a clean, contamination-free container for manual application. If using an automatic lubrication system, ensure the reservoir includes a mixing motor to keep the product in suspension.

An image of a thermometer on an orange background

Step 3
Temperature Check

Use a temperature gun to measure chain surface temperature. Ensure the chain is below 527°F (275°C) before application to allow proper wicking and avoid flash-off.

An image of a book on an orange background

Step 4
Read Safety Guidelines

Review the Safety Data Sheet (SDS) and follow proper storage and handling practices.

Step 1
Inspect the Equipment

Ensure chains are clean and free of debris or old lubricant residue. If possible, clean chains using compressed air, wire brushing, and/ or dry ice blasting.

Step 2
Agitate the Product

Thoroughly mix the lubricant to suspend graphite additives. Use a clean container for manual application or a mixing motor in automatic systems to maintain suspension.

Step 3
Temperature Check

Use a temperature gun to measure the chain’s surface temperature. Ensure the chain is below 527°F (275°C) before application to allow proper wicking and avoid flash off.

Step 4
Read Safety Guidelines

Review the Safety Data Sheet (SDS) and follow proper storage and handling practices.

Step 1
Inspect the
Equipment

Ensure chains are clean and free of debris or old lubricant residue. If possible, clean chains using compressed air, wire brushing, and/ or dry ice blasting.

Step 2
Agitate the
Product

Thoroughly mix lubricant to suspend graphite. Use a clean container for application or mixing motor in automatic systems to maintain suspension.

Step 3
Temperature
Check

Use a temperature gun to confirm the chain is below 527°F (275°C) for proper wicking and to prevent flash-off.

Step 4
Read Safety
Guidelines

Review the Safety Data Sheet (SDS) and follow proper storage and handling practices.

Application Guidelines

Manual Application

Apply the lubricant with a clean oil can, or drip container.
If using an oil can, ensure nozzle orifice is larger enough not to clog or reduce dispersion of graphite.
Target application areas: inner and outer chain links, pins, bushings, and sprockets.
Ensure you complete at least one full chain revolution.
Agitate the product periodically during the application process.

Automatic Lubrication System Application

1. Nozzle Maintenance

Use nozzles with orifices large enough to prevent clogging by the graphite additive. Regularly inspect and clean or replace nozzles to ensure consistent application.
Pro-Tip: Keep a spare nozzle set to allow easy replacement and cleaning.

2. System Agitation

Ensure the system includes a motor for continuous mixing to keep the graphite in suspension.

3. Frequency and Volume

Initial Application

Apply a generous amount of lubricant to ensure all chain components are coated. Initially a greater amount may be required, especially if applying to a dirty chain, then scale back as chain becomes cleaner. More lubricant is better than less.

Ongoing Maintenance

Monitor chain performance (e.g., squeaking, or increased drive amperage) to adjust lubrication intervals.
Maintain a regular lubrication schedule to prevent wear and overheating.
Determine minimum lubricant application frequency – use best practices benchmarks to ensure minimum intervals.

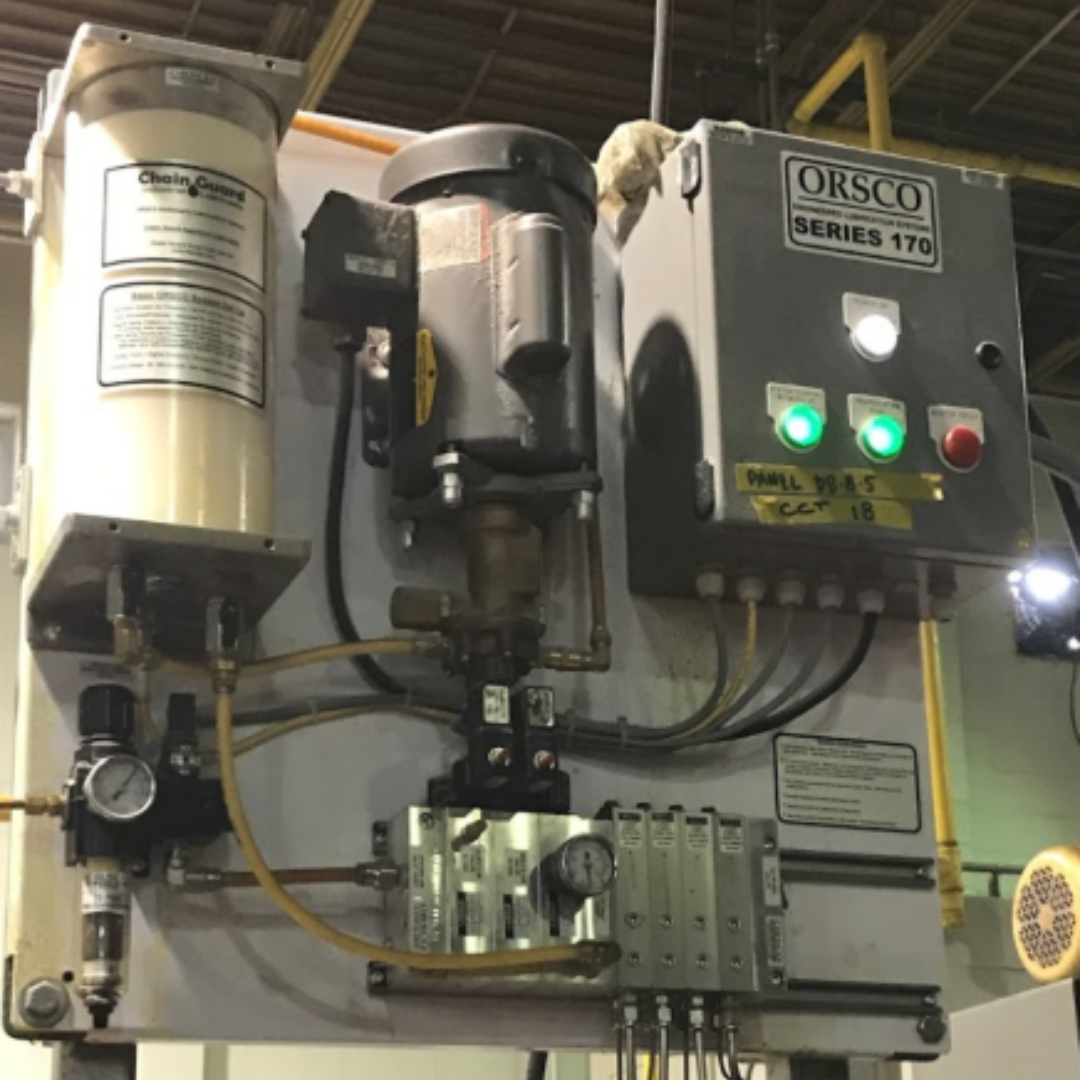

Sample Automatic Lubrication System with Agitation Feature for CG-FSG-220-H1

Application Guidelines

Manual Application

Apply the lubricant with a clean oil can, or drip container.
If using an oil can, ensure nozzle orifice is larger enough not to clog or reduce dispersion of graphite.
Target application areas: inner and outer chain links, pins, bushings, and sprockets.
Ensure you complete at least one full chain revolution.
Agitate the product periodically during the application process.

Automatic Lubrication System Application

1. Nozzle Maintenance

Use nozzles with orifices large enough to prevent clogging by the graphite additive. Regularly inspect and clean or replace nozzles to ensure consistent application.
Pro-Tip: Keep a spare nozzle set to allow easy replacement and cleaning.

2. System Agitation

Ensure the system includes a motor for continuous mixing to keep the graphite in suspension.

3. Frequency and Volume

Initial Application

Apply a generous amount of lubricant to ensure all chain components are coated. Initially a greater amount may be required, especially if applying to a dirty chain, then scale back as chain becomes cleaner. More lubricant is better than less.

Ongoing Maintenance

Monitor chain performance (e.g., squeaking, or increased drive amperage) to adjust lubrication intervals.
Maintain a regular lubrication schedule to prevent wear and overheating.
Determine minimum lubricant application frequency – use best practices benchmarks to ensure minimum intervals.

Sample Automatic Lubrication System with Agitation Feature for CG-FSG-220-H1

Application Guidelines

Manual Application

Apply the lubricant with a clean oil can, or drip container.
If using an oil can, ensure nozzle orifice is larger enough not to clog or reduce dispersion of graphite.
Target application areas: inner and outer chain links, pins, bushings, and sprockets.
Ensure you complete at least one full chain revolution.
Agitate the product periodically during the application process.

Automatic Lubrication System Application

1. Nozzle Maintenance

Use nozzles with orifices large enough to prevent clogging by the graphite additive. Regularly inspect and clean or replace nozzles to ensure consistent application.
Pro-Tip: Keep a spare nozzle set to allow easy replacement and cleaning.

Sample of ALS with Agitation

2. System Agitation

Ensure the system includes a motor for continuous mixing to keep the graphite in suspension.

3. Frequency and Volume

Initial Application

Apply a generous amount of lubricant to ensure all chain components are coated. Initially a greater amount may be required, especially if applying to a dirty chain, then scale back as chain becomes cleaner. More lubricant is better than less.

Ongoing Maintenance

Monitor chain performance (e.g., squeaking, or increased drive amperage) to adjust lubrication intervals.
Maintain a regular lubrication schedule to prevent wear and overheating.
Determine minimum lubricant application frequency – use best practices benchmarks to ensure minimum intervals.

Best Practices for Optimal Results

Grey and Orange Background with a Speed Symbol

Record the chain speed and amperage draw during use to standardize best practices.

Grey and Orange Background with a Storage Symbol

Store the product in a cool, dry location away from contaminants.

Grey and Orange Background with a Clean Symbol

Clean chains at least quarterly for optimal performance.

Grey and Orange Background with a Record Keeping Symbol

Maintain detailed lubrication logs, including usage, schedules, and system amperage draw, to ensure consistent results.

Best Practices for Optimal Results

Record the chain speed and amperage draw during use to standardize best practices.

Store the product in a cool, dry location away from contaminants.

Clean chains at least quarterly for optimal performance.

Keep detailed logs of usage, schedules, and system amperage to ensure consistency.

Best Practices for Optimal Results

Record the chain speed and amperage draw during use to standardize best practices.

Store the product in a cool, dry location away from contaminants.

Clean chains at least quarterly for optimal performance.

Keep detailed logs of usage, schedules, and system amperage to ensure consistency.

Special Considerations

For ovens consistently operating and have a chain surface temperature below 600°F, use CG-FS-220-H1 as an alternative to CG-FSG-220-H1.
Avoid diluting the product.
Use only as directed to maintain its performance characteristics.
Monitor chain temperature directly — oven air temperature readings may not accurately reflect chain surface heat.
